MikroTik hAP Lite RGB LED modding :)

Hi friends. I modding my MikroTik hAP Lite router with WS2812B RGB LED. it can communicating with the MikroTik SNMP protocol to showing the network status with LED color and effects, like DDOS attacks, Port scanner, ICMP ping from unknown IP’s and more…

the MCU is standalone ESP8266 ( ESP01 ) and I replaced the flash chip with W25Q32 for more space.

here the photos

testing the ESP01 and WS2812 on bread board for stability:

the MikroTik hAP Lite routerboard:

testing the RGB controller on the MikroTik routerboard ( it’s directly connected to the 3.3 volt routerboard regulator ):

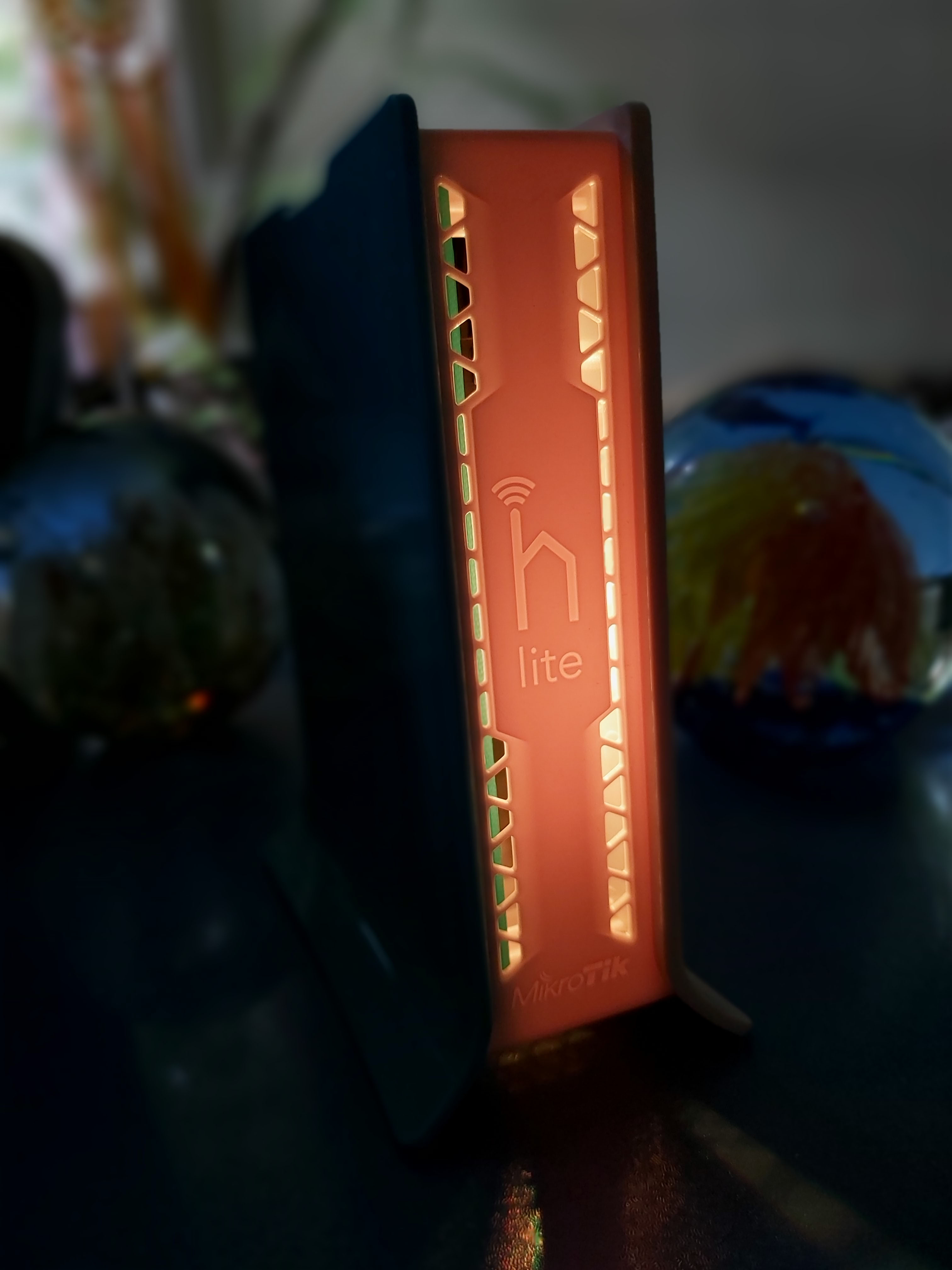

and the final result:

the DDOS detection video:

https://youtu.be/-SQDvPjpPqU

and the color effects video:

https://youtu.be/Y1iczObEtJQ

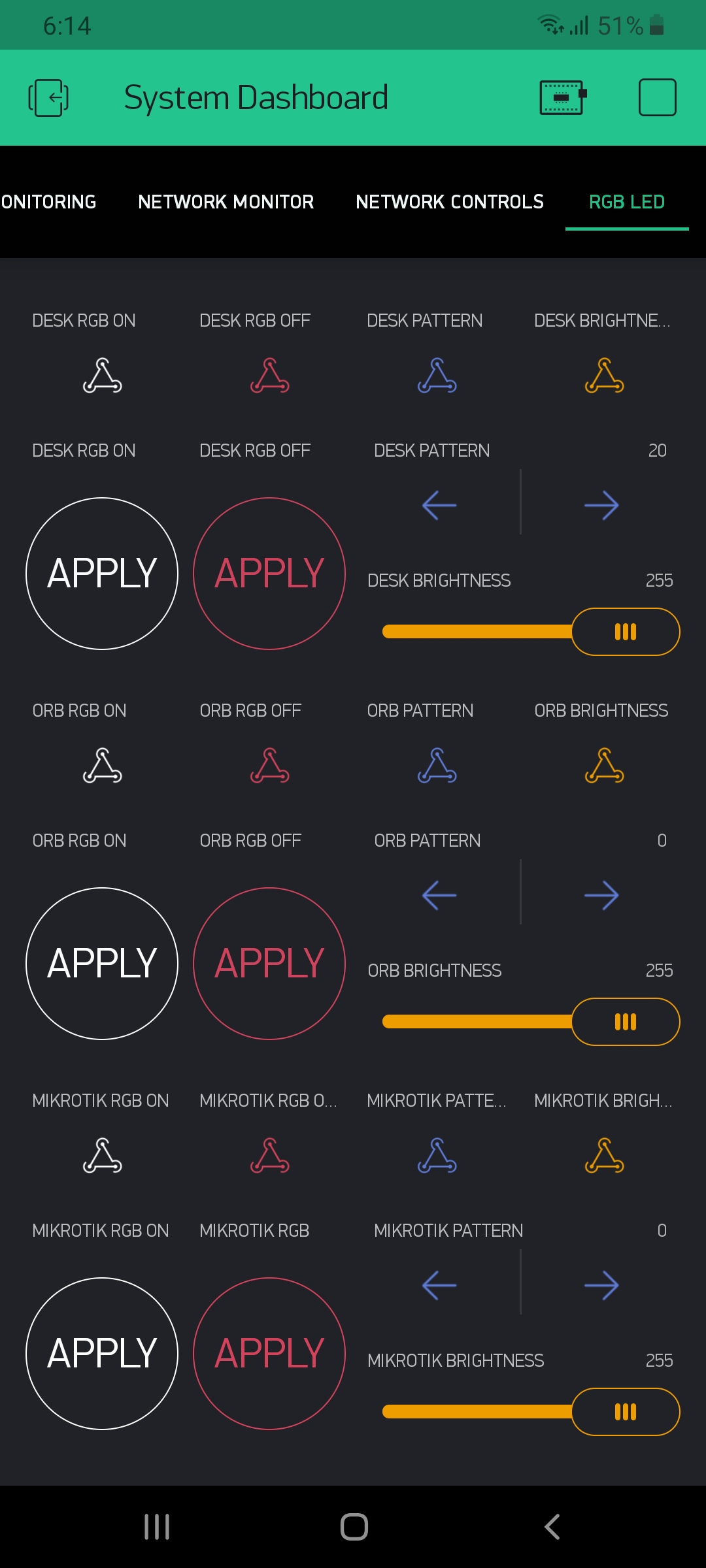

Blynk App:
