EthernetWebServer for STM32 boards using Ethernet built-in LAN8742A, W5x00 or ENC28J60 shields

This library v1.0.0 currently supports

  1. STM32 boards with built-in Ethernet LAN8742A such as :
  • Nucleo-144 (F429ZI, F767ZI)
  • Discovery (STM32F746G-DISCOVERY)
  1. STM32 boards (with 64+K Flash) running EMC28J60 shields

This is simple yet complete WebServer library for STM32 boards running built-in Ethernet LAN8742A (Nucleo-144, Discovery) or EMC28J60 Ethernet shields. The functions are similar and compatible to ESP8266/ESP32 WebServer libraries to make life much easier to port sketches from ESP8266/ESP32.

The library supports

  1. HTTP Server and Client
  2. HTTP GET and POST requests, provides argument parsing, handles one client at a time.

Library is based on and modified from:

  1. Ivan Grokhotkov’s ESP8266WebServer

The EthernetWebServer class found in EthernetWebServer.h header, is a simple web server that knows how to handle HTTP requests such as GET and POST and can only support one simultaneous client.

There currently are 6 examples:

  1. HelloServer
  2. HelloServer2
  3. AdvancedWebServer
  4. HttpBasicAuth
  5. PostServer
  6. SimpleAuthentication

This is the HelloServer

/*
 * Currently support
 * 1) STM32 boards with built-in Ethernet (to use USE_BUILTIN_ETHERNET = true) such as :
 *    - Nucleo-144 (F429ZI, F767ZI)
 *    - Discovery (STM32F746G-DISCOVERY)
 *    - All STM32 Boards with Built-in Ethernet, See How To Use Built-in Ethernet at (https://github.com/khoih-prog/EthernetWebServer_STM32/issues/1)
 * 2) STM32 boards (with 64+K Flash) running EMC28J60 shields (to use USE_BUILTIN_ETHERNET = false)
 * 3) STM32 boards (with 32+K Flash) running W5x00 Ethernet shields
 *
 */

#define USE_BUILTIN_ETHERNET    false    //true
//  If don't use USE_BUILTIN_ETHERNET, and USE_UIP_ETHERNET => use W5x00 with Ethernet library
#define USE_UIP_ETHERNET        false

#include <EthernetWebServer_STM32.h>

// Enter a MAC address and IP address for your controller below.

byte mac[] = {
  0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED
};

// Select the IP address according to your local network
IPAddress ip(192, 168, 2, 200);

EthernetWebServer server(80);

const int led = 13;

void handleRoot()
{
  server.send(200, "text/plain", "Hello from EthernetWebServer");
}

void handleNotFound()
{
  String message = "File Not Found\n\n";
  message += "URI: ";
  message += server.uri();
  message += "\nMethod: ";
  message += (server.method() == HTTP_GET)?"GET":"POST";
  message += "\nArguments: ";
  message += server.args();
  message += "\n";
  for (uint8_t i=0; i<server.args(); i++)
  {
    message += " " + server.argName(i) + ": " + server.arg(i) + "\n";
  }
  server.send(404, "text/plain", message);
  digitalWrite(led, 0);
}

void setup(void)
{
  // Open serial communications and wait for port to open:
  Serial.begin(115200);
  delay(1000);
  Serial.println("\nStarting HelloServer on Nucleo-144");

  // start the ethernet connection and the server:
  Ethernet.begin(mac, ip);

  server.on("/", handleRoot);

  server.on("/inline", [](){
    server.send(200, "text/plain", "This works as well");
  });

  server.onNotFound(handleNotFound);

  server.begin();

  Serial.print(F("HTTP EthernetWebServer is @ IP : "));
  Serial.println(Ethernet.localIP());
}

void loop(void)
{
  server.handleClient();
}

Update Feb 28th 2020

New in Version v1.0.1

  1. Add support to W5x00 Ethernet shields to all STM32 boards having 64+K bytes Flash.

Updated: Mar 2nd 2020

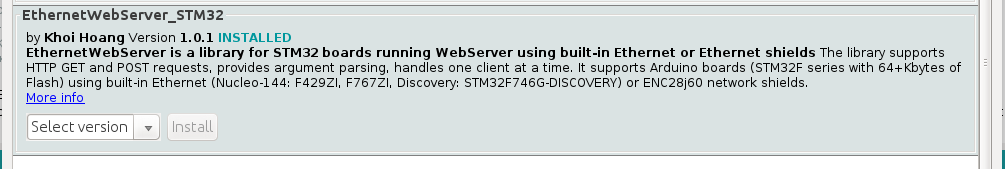

EthernetWebServer_STM32 libraries v1.0.1 just got included into Arduino Library Manager.
Now you can install this library directly from Arduino Library Manager
arduino-library-badge

Updated: Mar 6th 2020

New in Version v1.0.2

  1. Remove dependency on Functional-VLPP library.
  2. Enhance examples and update README.md
1 Like

Updated Sept 16th 2020

Major Release v1.0.5

  1. Add support to new EthernetENC library for ENC28J60.
  2. Add support to Ethernet2, Ethernet3 and EthernetLarge libraries on top of Ethernet.
  3. Add debug feature. Clean up code. Restructure examples.

New in v1.0.4

  1. Add support to all STM32 boards (STM32F/L/H/G/WB/MP1) with 32K+ Flash.
  • STM32L0, STM32L1, STM32L4
  • STM32G0, STM32G4
  • STM32H7
  • STM32WB
  • STM32MP1

New in v1.0.3

  1. Fix bug not closing client and releasing socket.
  2. Merge new features from latest ESP8266WebServer
  3. Add and enhance examples.
  4. Add back dependency to Functional-VLPP library.
